Have Powershell speak Citrix

Just a little sunday fun here.

This is actually a part of a bigger plan involving Powershell, Octoblu and Citrix.
The idea being that voice feedback is enabled for scripts and flows.

Powershell can quite easy read strings for you.

In order to make this easy to use and of cource reusable I made a small function that can be put into a module. (let me know if you need a blog post on how to do this)

function Out-Speak {
    [CmdletBinding()]
    param (
        [parameter(Mandatory,
                   ValueFromPipeline=$true)]
        [String]$Text
    )

    Begin {
    }
    Process {
        foreach ($Line in $Text){
            Add-Type -AssemblyName System.Speech
            $synth = New-Object -TypeName System.Speech.Synthesis.SpeechSynthesizer
            $synth.Speak("$Line")
        }
    }
    End {
    }
}

This can then be used to get Powershell to read strings for you using this syntax:

"This is a test to hear what it sounds like. Did you like what you just heard?" | Out-Speak

This can then be used to do some fun things with Citrix.

You can speak out the number of users currently connected with this – and speak out the usernames:

Add-PSSnapin -Name Citrix.Broker.Admin.V2

$UserCount = (Get-BrokerSession -SessionState Active).count
$UserName = (Get-BrokerSession -SessionState Active).UserFullName

"$UserCount active users is connected to the Citrix infrastructure right now.", "The usernames are:. $UserName" | Out-Speak

If you have a lot of users this is not very usefull but I’m sure you get the point…

What you can use this for is endless and only limited by your own imagination.

Later I’ll get back with further use of this in Octoblu flows an so on.

Please let me know if you have questions or comments.

/Brian

Setting up Amazon Alexa with Citrix Octoblu

Hi all,

When I was in the US for Synergy with my family I got an Amazon Echo Dot in birthday present. I wanted to get one of these to use with Citrix Octoblu so now that I am home again I have spent some time getting it to work and yesterday I finally got it working as I wanted to. The first things I have done with it is to turn on my Sonos speaker, set the volume and turn it off. I have also done a few things with Phillips Hue, but that will be expanded a bit soon.

In this small guide, I want to do a visual guide on how to set up the integration between Alexa and Octoblu since the guides I found was in writing only and I had a few problems making it work. I have created the guide to first do the work in Octoblu to create the “thing” that you need, then set up Alexa with the information needed there and lastly test it out with a flow in Octoblu.

I did use this guide from Github myself, but I felt that I was missing some information and it took quite some tries to get it working, but without it I would have been really lost 🙂 https://github.com/octoblu/alexa-service#creating-custom-skill

UPDATE: Thanks to Dave Brett I have done an update to the article. I is a requirement to have the same language on Alexa and the Alexa skill, so I have added a few screenshots to show those settings.

Getting the language you set up Alexa with

  1. Go to http://alexa.amazon.com/
  2. Click on “Settings” Skærmbillede 2017-06-12 kl. 17.13.48
  3. In the “General” section note the “Language” setting. The Alexa skills needs to match this one, so if you want to change from UK to US English or vice versa do it now by clicking on the “English (United States)” and selecting the language of your preference.Skærmbillede 2017-06-12 kl. 17.14.03.png

Creating the “thing” in Citrix Octoblu

  1. Go to https://app.octoblu.com/ and sign up for an account if you don’t have one already
  2. Click on “Things” Skærmbillede 2017-06-11 kl. 14.04.18
  3. Click on “All Things”Skærmbillede 2017-06-11 kl. 14.04.34
  4. On the top right enter “Oauth” in the search field and click on the “OAUTH APPLICATION” that is shown under “Octoblu” section. Skærmbillede 2017-06-11 kl. 14.05.15
  5. Click on “Connect oauth application” Skærmbillede 2017-06-11 kl. 14.05.38
  6. Make sure it says, “Register a new thing” and give it a name and then click on “Connect oauth application”Skærmbillede 2017-06-11 kl. 14.05.54
  7. When created go to “My Things” section and click on the oauth application you just created. Skærmbillede 2017-06-11 kl. 14.06.09
  8. For setting up Alexa you will need the UUID and a Token from this page. You can either keep it open or copy/paste the information into notepad or whatever app you use for notes. So, when you have the UUID click on “Generate Token” Skærmbillede 2017-06-11 kl. 14.06.26
  9. Note down the token number so you have it for later use in AlexaSkærmbillede 2017-06-11 kl. 14.06.35
  10. Give the app a name, and note that the “CallbackUrl” will be filled later.Skærmbillede 2017-06-11 kl. 14.06.58
  11. Click on “Permissions” and set “Can be discovered by” to “Everything”Skærmbillede 2017-06-11 kl. 14.07.10
  12. This concludes the first setup needed, now it is time to set up an Alexa skill.

Setting up an Alexa skill

  1. Go to https://developer.amazon.com/ and login with you Amazon account (you should have one since you have an Amazon Echo Dot.
  2. Click on the “Alexa” tab.Skærmbillede 2017-06-11 kl. 14.32.19.png
  3. Click on “Get Started” under the “Alexa Skills Kit” section. Skærmbillede 2017-06-11 kl. 14.33.31.png
  4. Click on “Add a new skill”Skærmbillede 2017-06-11 kl. 14.35.13.png
  5. Choose you language for the skill, this has to be the same as what we saw in the first part of this guide. In my case I have selected “English (U.S.)”, other choises are shown on a screenshot below, but remember to have the same on Alexa and the Alexa skill.Skærmbillede 2017-06-12 kl. 17.12.16Skærmbillede 2017-06-12 kl. 17.12.22.png
  6. On the first page, you must name your skill and you need to set the “Invocation name”. The invocation name is the name you use when activating Alexa”, in my setup it will work like this: “Alexa ask octoblu”Skærmbillede 2017-06-10 kl. 16.45.17.png
  7. The “Intent schema” is in JSON format and the content is pasted in from the guide I mentioned in the start of my own guide. Below is both a picture of the schema and the code I have used. { "intents": [ { "slots": [ { "name": "Name", "type": "TRIGGER" } ], "intent": "Trigger" }, { "intent": "ListTriggers" }, { "intent": "AMAZON.HelpIntent" }, { "intent": "AMAZON.StopIntent" }, { "intent": "AMAZON.CancelIntent" } ] }

    Skærmbillede 2017-06-10 kl. 16.48.49.png 8. In the “Custom slot types” type in “TRIGGER” under “Enter Type”. “Enter Values” will be the commands Alexa and Octoblu needs to handle, in my case “play my music” and “stop my music”. When used with Alexa this will translate into “Alexa ask octoblu play my music”. Skærmbillede 2017-06-11 kl. 14.56.53.png 9. Under “Sample utterances” I have filled in the information from the guide as well. I have pasted both code and picture in below to illustrate. Trigger give me the {Name} Trigger give me {Name} Trigger give me a {Name} Trigger get me the {Name} Trigger get me {Name} Trigger get me a {Name} Trigger could you set {Name} Trigger could you please set {Name} Trigger i need {Name} Trigger i need {Name} please Trigger tell me my {Name} Trigger list {Name} Trigger i want {Name} Trigger create {Name} Trigger create a {Name} ListTriggers what my triggers are ListTriggers give me a list of my triggers ListTriggers get me a list of my triggers ListTriggers a list of my triggers ListTriggers my triggers ListTriggers the triggers i have ListTriggers what triggers do i have

    Skærmbillede 2017-06-11 kl. 15.56.47.png 10. Click on “Next” to continue with the setup.Skærmbillede 2017-06-11 kl. 16.02.18.png 11. Under “Global Fields” mark “HTTPS” as “Service Endpoint Type” and mark the geographical location near you. I have selected “North America” this time, but will try and change that since I am based in Denmark. Also make sure that you have “Account linking” enabled by marking “Yes” in that section. Skærmbillede 2017-06-11 kl. 16.03.22.png 12. You will need to fill in some fields on this next screen. “Authorization URL” is “https://oauth.octoblu.com/alexa/authorize”. The client ID is the UUID from the app that we created in the Octoblu part of this guide. The domain list is a list of domains where you can fetch information from. I have used the list from the guide I found on GitHub. There is no need to set a scope for this setup. Skærmbillede 2017-06-11 kl. 16.07.35.png 13. The redirect URLs are the ones you need to put back into the Octoblu app, so note them down. Set “Authorization grant type” to “Auth Code Grant”, set “Access Token URI” to “https://oauth.octoblu.com/access_token” and the “Client Secret” is the token that we generated in the Octoblu app. Set the “Client Authentication Scheme” to “HTTP Basic (Recommended)” and under permission I have put in “List Read” and “List Write” I don’t think they are needed, but this is how my working setup is created. The “Privacy Policy URL” I have set to “https://app.octoblu.com/terms”. Click on “Next” when ready. Skærmbillede 2017-06-11 kl. 16.17.59 14. For the SSL certificate setup mark the “My development endpoint has a certificate from a trusted certificate authority” and click “Next”Skærmbillede 2017-06-11 kl. 16.28.34 15. The next page isn’t used in my case, but just so you can follow along this is what it looks like. Click on “Next” to continue.Skærmbillede 2017-06-11 kl. 16.32.54Skærmbillede 2017-06-11 kl. 16.33.07 16. The publishing section isn’t used in my case either. I did put a bit of information in there and I have posted screenshots below so you can follow along. Click on “Next” to continue.Skærmbillede 2017-06-11 kl. 16.35.06Skærmbillede 2017-06-11 kl. 16.35.31Skærmbillede 2017-06-11 kl. 16.35.38 17. On the last tab, we have privacy settings. I have filled them out, but since I am not publishing this skill it really isn’t needed. Click on “Save” to complete the setup. Skærmbillede 2017-06-11 kl. 16.37.43

Going back to Octoblu to fill in the missing part from the setup.

We had one thing we needed from the Alexa setup over in the Oauth application in Octoblu, so let’s get those information in.

  1. Go to https://app.octoblu.com/ and sign up for an account if you don’t have one already
  2. Click on “Things” Skærmbillede 2017-06-11 kl. 14.04.18
  3. Scroll down to you find your Oauth application and click on it.Skærmbillede 2017-06-11 kl. 14.06.09
  4. Fill in the “Callback URL” and click on “Save”. The callback url is the “Redirect URLs” from the Alexa configuration.Skærmbillede 2017-06-11 kl. 16.42.23.png

The last configuration part – Linking Alexa and Octoblu accounts.

The last part we need to do before we can start using Alexa to kick off Octoblu flows is to link the two configurations together. This is done in the Alexa configuration as shown below.

  1. Go to http://alexa.amazon.com/
  2. Click on “Skills” in the left side of the screen and when that is loaded click on “Your Skills” in the top right of the screen.Skærmbillede 2017-06-11 kl. 16.46.53.png
  3. Find your Octoblu skill in the list, yours should say “Account linking required”Skærmbillede 2017-06-11 kl. 16.48.39
  4. Click on “Link Account”.Skærmbillede 2017-06-11 kl. 16.52.52
  5. This will redirect you to the Octoblu site where you click on “Authorize”. I forgot to take that last screenshot, but hope you can manage without it.

An Octoblu example

To show just a simple example on how to use the setup in Octoblu look at the screenshot below. I have four “Echo in” controls that each links to an action on my Sonos speaker. Skærmbillede 2017-06-11 kl. 16.56.01

Hope this guide can help you get started with using Alexa and Citrix Octoblu to do some amazing workflows for both work and home automation.

Generating wildcard certificate from internal certificate authority using PowerShell

DISCLAIMER: THIS IS NOT INTENDED FOR ANY PRODUCTION ENVIRONMENT

Updated on June 24th 2017: Correction to issue where the server it was running on already has a server authentication certificate. Thank you Eric (@XenAppBlog) for the feedback.

Updated on June 25th 2017: Updated with a new version of the script that requires Windows 10 or Server 2016. The updated version adds support for password protection of the PFX file and it also cleans up private keys after export.

Hi all,

When you are building Citrix environments or any other environment that uses certificates it is often easiest to use a wildcard certificate from your internal PKI infrastructure when you are testing. I had a talk with Dave Brett at Synergy about automating the process of getting a wildcard PFX certificate that can be used during automation of Citrix installations. I thought it would be an easy task since Microsoft has baking in PowerShell in most of their products and services now, but it turned out that I couldn’t find any native PowerShell commands that allowed be to perform the task.

Since I like doing PowerShell scripts an automation that of course wasn’t the end of it, so I started digging into what can be done and I found this script on the Microsoft Script Center: MS Script Center The problem I had with this script is that I wouldn’t do wildcard certificates.

After a while I started to build my own script from scratch, but of course getting a lot of inspiration from the script found on MS Script center. I build the script out so that I would locate the CA inside the domain by itself (only tested when there is one CA in the environment) and the doing an export to a file server as well.

The script needs to be run as a domain user, so that cause a lot of testing when incorporating it with Microsoft MDT, but got that working in the end.

To use the script in MDT follow these steps:

  1. Add a “Run Command Line” action to the task sequence Skærmbillede 2017-06-07 kl. 20.49.56.png

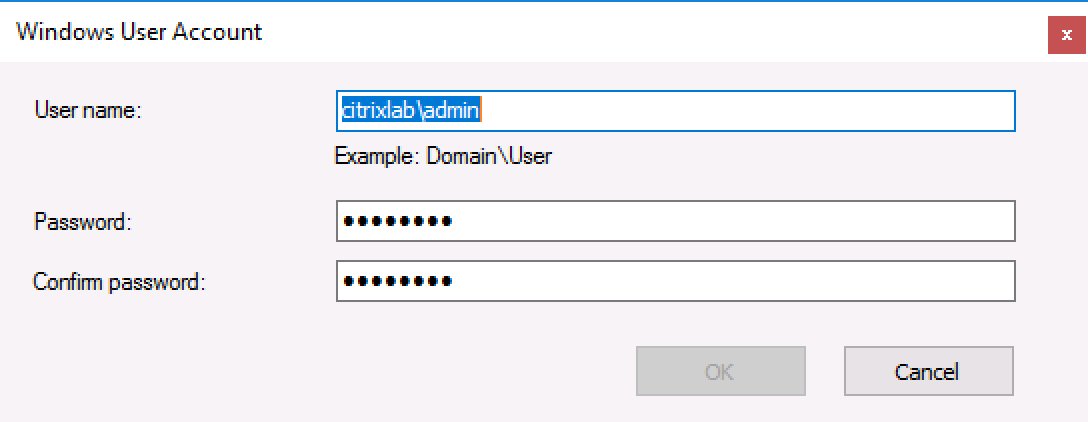

  2. Mark “Run this step as the following account” and enter a domain user name and password as shown below Skærmbillede 2017-06-07 kl. 20.50.17.png

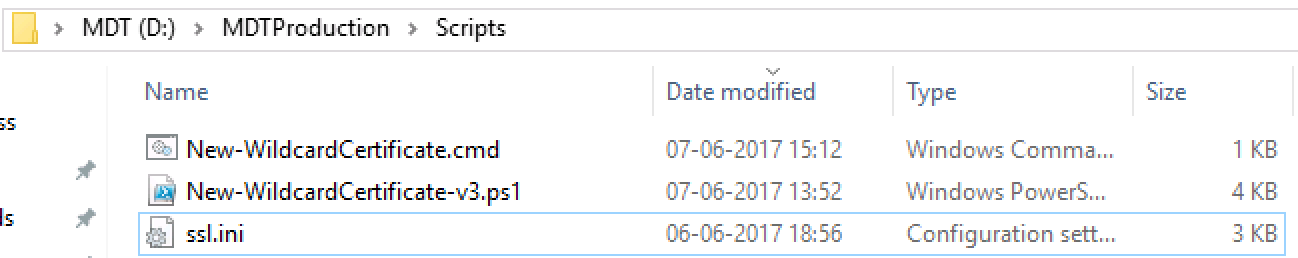

  3. Place the scripts in the scripts folder (or any other place you feel like and can reference) Skærmbillede 2017-06-07 kl. 20.50.46.png
  4. Edit the “New-WildcardCertificate.cmd” file to map the network drive of your choice and execute the PowerShell script. If you follow my guide it will map to your MDT deployment share. Skærmbillede 2017-06-07 kl. 20.51.26.png
  5. Run the task sequence and test it out.

The PowerShell script is shown in the bottom of this post and as always let me know if you have input or questions about it.

You can download the two scripts and ini file here: Download

/Martin

<#
.Synopsis
   Automate the creation of wildcard certificates
.DESCRIPTION
   This script can automate the creation of wildcard certificates from an internal PKI infrastructure.
   The output PFX file will not have a password and it will be placed in the folder the PS1 script is located.
   You will need to have the SSL.INI file in the same folder as this script and you will need to run the script as a domain users.
   Use the function within this script by editing the line in the buttom.
.PARAMETER Path
  Path to where temporary files are stored
.PARAMETER PFXPath
  Path to where the PFX file is exported
.PARAMETER CAName
  Name of the Certificate authority
.EXAMPLE
   New-WildcardCertificate
.EXAMPLE
   New-WildcardCertificate -Path C:\Temp -PFXPath "\\FILE01\Certificates"
.EXAMPLE
   New-WildcardCertificate -Path C:\Temp -PFXPath "\\FILE01\Certificates" -CAName "DC01.Domain.Com\Domain-DC01-CA"
#>
Function New-WildcardCertificate {
    [CmdletBinding()]
    Param(
      [Parameter(Mandatory=$False,Position=1)]
       [string]$Path = "C:\Windows\Temp",
       [Parameter(Mandatory=$False,Position=2)]
       [string]$PFXPath = ".",
       [Parameter(Mandatory=$False,Position=3)]
       [string]$CAName
    )
    Begin {
        $Domain = (Get-ItemProperty -path hklm:\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters -Name Domain).Domain
        If (!(Test-Path -Path $PSScriptRoot\ssl.ini)) {
            Write-Host "You don't have the SSL.INI file that is required to run this script" -ForegroundColor Red
            Break;
        }
        If (!(Test-Path -Path $Path)) {
            New-Item -Path $Path -ItemType Directory
        }
        (Get-Content $PSScriptRoot\ssl.ini) | Foreach-Object {$_ -replace 'ServerFQDN',"*.$Domain"}  | Out-File .\Wildcard.ini
    }
    Process {
        If ($CAName -eq "") {
            Write-Verbose "Finding certificate authority"
            $CA = New-Object -ComObject CertificateAuthority.Config
            $CAName = $CA.GetConfig(0)
        }

        Write-Verbose "Requesting certificate"
        & c:\windows\system32\certreq.exe –new "Wildcard.ini" "$Path\wildcard.req"
        & c:\windows\system32\certreq.exe -config "$CAName" –submit "$Path\wildcard.req" "$Path\wildcard.cer"

        Write-Verbose "Installing certificate"
        & c:\windows\system32\certreq.exe –accept "$Path\wildcard.cer"

        Write-Verbose "Exporting certificate and private key"
        $cert = new-object security.cryptography.x509certificates.x509certificate2 -arg "$Path\wildcard.cer"

        $certbytes = $cert.export([System.Security.Cryptography.X509Certificates.X509ContentType]::pfx)

        $certbytes | Set-Content -Encoding Byte  -Path "$PFXPath\Wildcard.pfx" -ea Stop
        Write-Verbose "Certificate successfully exportert to wildcard.pfx"
    }
    End {
        Write-Verbose "deleting exported certificat from computer store"
        Remove-Item -Path cert:\localmachine\my\$($Cert.Thumbprint) -DeleteKey
        Remove-Item -Path $Path\wildcard.cer -Force
        Remove-Item -Path $Path\wildcard.req -Force
        Remove-Item -Path $Path\wildcard.rsp -Force
    }
}
New-WildcardCertificate -Path C:\Install -PFXPath "\\Server01\Shares" -Verbose

For Windows 10 and 2016 only:

<#
.Synopsis
   Automate the creation of wildcard certificates
.DESCRIPTION
   This script can automate the creation of wildcard certificates from an internal PKI infrastructure.
   The output PFX file will not have a password and it will be placed in the folder the PS1 script is located.
   You will need to have the SSL.INI file in the same folder as this script and you will need to run the script as a domain users.
   Use the function within this script by editing the line in the buttom.
.PARAMETER Path
  Path to where temporary files are stored
.PARAMETER PFXPath
  Path to where the PFX file is exported
.PARAMETER CAName
  Name of the Certificate authority
.EXAMPLE
   New-WildcardCertificate
.EXAMPLE
   New-WildcardCertificate -Path C:\Temp -PFXPath "\\FILE01\Certificates"
.EXAMPLE
   New-WildcardCertificate -Path C:\Temp -PFXPath "\\FILE01\Certificates" -CAName "DC01.Domain.Com\Domain-DC01-CA"
#>
Function New-WildcardCertificate {
    [CmdletBinding()]
    Param(
      [Parameter(Mandatory=$False,Position=1)]
       [string]$Path = "C:\Windows\Temp",
       [Parameter(Mandatory=$False,Position=2)]
       [string]$PFXPath = ".",
       [Parameter(Mandatory=$False,Position=3)]
       [string]$CAName,
       [Parameter(Mandatory=$False,Position=4)]
       [string]$Password
    )
    Begin {
        $Domain = (Get-ItemProperty -path hklm:\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters -Name Domain).Domain
        If (!(Test-Path -Path $PSScriptRoot\ssl.ini)) {
            Write-Host "You don't have the SSL.INI file that is required to run this script" -ForegroundColor Red
            Break;
        }
        If (!(Test-Path -Path $Path)) {
            New-Item -Path $Path -ItemType Directory
        }
        (Get-Content $PSScriptRoot\ssl.ini) | Foreach-Object {$_ -replace 'ServerFQDN',"*.$Domain"}  | Out-File .\Wildcard.ini
    }
    Process {
        If ($CAName -eq "") {
            Write-Verbose "Finding certificate authority"
            $CA = New-Object -ComObject CertificateAuthority.Config
            $CAName = $CA.GetConfig(0)
        }
        Write-Verbose "Requesting certificate"
        & c:\windows\system32\certreq.exe –new "Wildcard.ini" "$Path\wildcard.req"
        & c:\windows\system32\certreq.exe -config "$CAName" –submit "$Path\wildcard.req" "$Path\wildcard.cer"

        Write-Verbose "Installing certificate"
        & c:\windows\system32\certreq.exe –accept "$Path\wildcard.cer"

        Write-Verbose "Exporting certificate and private key"
        $PFXPassword = ConvertTo-SecureString -String $Password -Force -AsPlainText
        $cert = new-object security.cryptography.x509certificates.x509certificate2 -arg "$Path\wildcard.cer"
        Get-item cert:\localmachine\my\$($cert.Thumbprint) | Export-PfxCertificate -FilePath "$PFXPath\Wildcard.pfx" -Password $PFXPassword
        Write-Verbose "Certificate successfully exportert to wildcard.pfx"
    }
    End {
        Write-Verbose "deleting exported certificat from computer store"
        Remove-Item -Path cert:\localmachine\my\$($Cert.Thumbprint) -DeleteKey
        Remove-Item -Path $Path\wildcard.cer -Force
        Remove-Item -Path $Path\wildcard.req -Force
        Remove-Item -Path $Path\wildcard.rsp -Force
    }
}
New-WildcardCertificate -Path C:\Install -PFXPath "\\Server01\Shares" -Password "Password1" -Verbose

Updating Group policy on specific Delivery Groups and Servers

Doing a lot of Citrix implementations I often find myself wanting to update Group policy on a number of Citrix servers to test changes.

One could log on to every single server and update group policy with the GPupdate command – but hey that would take forever.

Powershell to the rescue.

I created a function that queries for delivery groups and presents them with Out-GridView. Out-GridView is a native cmdlet in powershell that creates a sort of GUI for the object passed into it.

This looks like this in my test environment with two delivery groups present:

When the delivery group you want to update and press the OK button.

This passes the delivery group names on to the next step – selecting the servers to update:

If you want to select all servers press CTRL-A and press OK when ready

The servers choosen is then passed on to the part that dows the actual gpupdate part.

The script utillizes Powershell remoting to issue the GPupdate command to each server choosen

To speed things up in a larger environment the script does this with a powershell job for each server. These jobs run synchronously in batches of 32 by default. This number can be change with the ‘ThrottleLimit’ parameter for Invoke-Command.

Each job fires up a new Powershell instance on your computer so be carefull not to bloat with to many at a time.

If you want to view the progress an result you can use the Get-Job cmdlet:

And when it is has completed:

If a server fails to execute the command it is possible to view the actual output from the remote server for a single job with ‘Retrieve-Job’

As you can see this the exact output as if you had run it locally on your own server.

As this uses Powershell remoting to do its job this has to be enabled. It is enabled by default in Windows Server 2012 and later.

I hope that others will find this usefull and please reach out if you have comments or things that could need improvement.

/Brian

Here is the entire Powershell function:

Function Update-DeliveryGroupGPO {
  <#
  .Synopsis
   Refreshes GPO on selected Delivery Groups and servers
  .DESCRIPTION
   Queries for list of delivery groups. Based on selected delivery groups servers are retreived. Selected servers will be contacted via Powershell remoting to run a GPupdate
   command. Use Get-Job to see the execution status of each server selected Use Receive-Job to see the output generated from the job
  .EXAMPLE
   Update-DeliveryGroupGPO Starts the script - Uses Out-Gridview to guide through the process
  .INPUTS
   Script takes no input from pipeline
  .OUTPUTS
   Outputs jobs you can see with Get-Job and Receive-Job
  #>
  [CmdletBinding()]
  Param ()
  Add-PSSnapin citrix*

  $DeliveryGroups = Get-BrokerDesktopGroup |
                      Select-Object Name |
                      Out-GridView -Title "Choose delivery group" -PassThru

  $Servers = Get-BrokerDesktop |
               Where-Object { $DeliveryGroups.name -contains $_.DesktopGroupName } |
               Select-Object DNSName, DesktopGroupName |
               Sort-Object -Property desktopgroupname |
               Out-GridView -Title "Choose servers" -PassThru

  foreach ($Server in $Servers) {
    Write-Host "Updating $($Server.DNSName)"
    Invoke-Command -ComputerName $($Server.DNSName) -ScriptBlock { gpupdate } -AsJob | Out-Null
  }
}

Citrix App Layering – Basis configuration 4.2 – Part 4

Part 4 – Creating the OS Layer

  1. Click on “Layers” in the top menuSkærmbillede 2017-06-01 kl. 21.10.09
  2. Click on Skærmbillede 2017-06-01 kl. 21.12.58
  3. On the right on “Create OS Layer” Skærmbillede 2017-06-01 kl. 21.14.24.png
  4. Under “Layer Details” fill in the name of the wished OS Layer, in my case it is Windows Server 2016 and it is version 1. Screenshot_26
  5. Click on “New” to add a connection to your hypervisor. I will add XenServer in this example.Screenshot_27
  6. Select your hypervisor type in the dropdown box and click “New”Screenshot_28
  7. Fill in the details of your XenServer as shown below. Remember to check credentials Screenshot_32Screenshot_29Screenshot_30
  8. Below the XenServer details you need to fill in the template machine on the XenServer. Select the template in the dropdown box and also select the storage repository. Click on “Test” to verify all is OK. Click on “Save”Screenshot_31
  9. Mark the new connection and continue to the next section.Screenshot_36
  10. Click on “Select Virtual Machine”Screenshot_37
  11. Select your reference machine to add into your Citrix App Layering as OS Layer. Screenshot_38
  12. Verify that you have the correct VM and continue to the next section. Screenshot_39
  13. Select an icon, I just selected one of the defaults but you can also upload one.Screenshot_40
  14. Verify that everything is OK and click on “Create Layer” to start the layer creation.Screenshot_41
  15. In the bottom you can see that the task has started.Screenshot_42
  16. On my server it takes around 40 mins to complete. The creation is done on a consumer HDD that is a few years old so I expect it will be a lot faster on SSD or NVME.

I hope that is guide will help you getting started with Citrix App Layering as it is a awesome piece of software that can ease your XenApp / XenDesktop environment. I plan on expanding this series to also include what is needed to be done on the client/server side of the layering proces.
